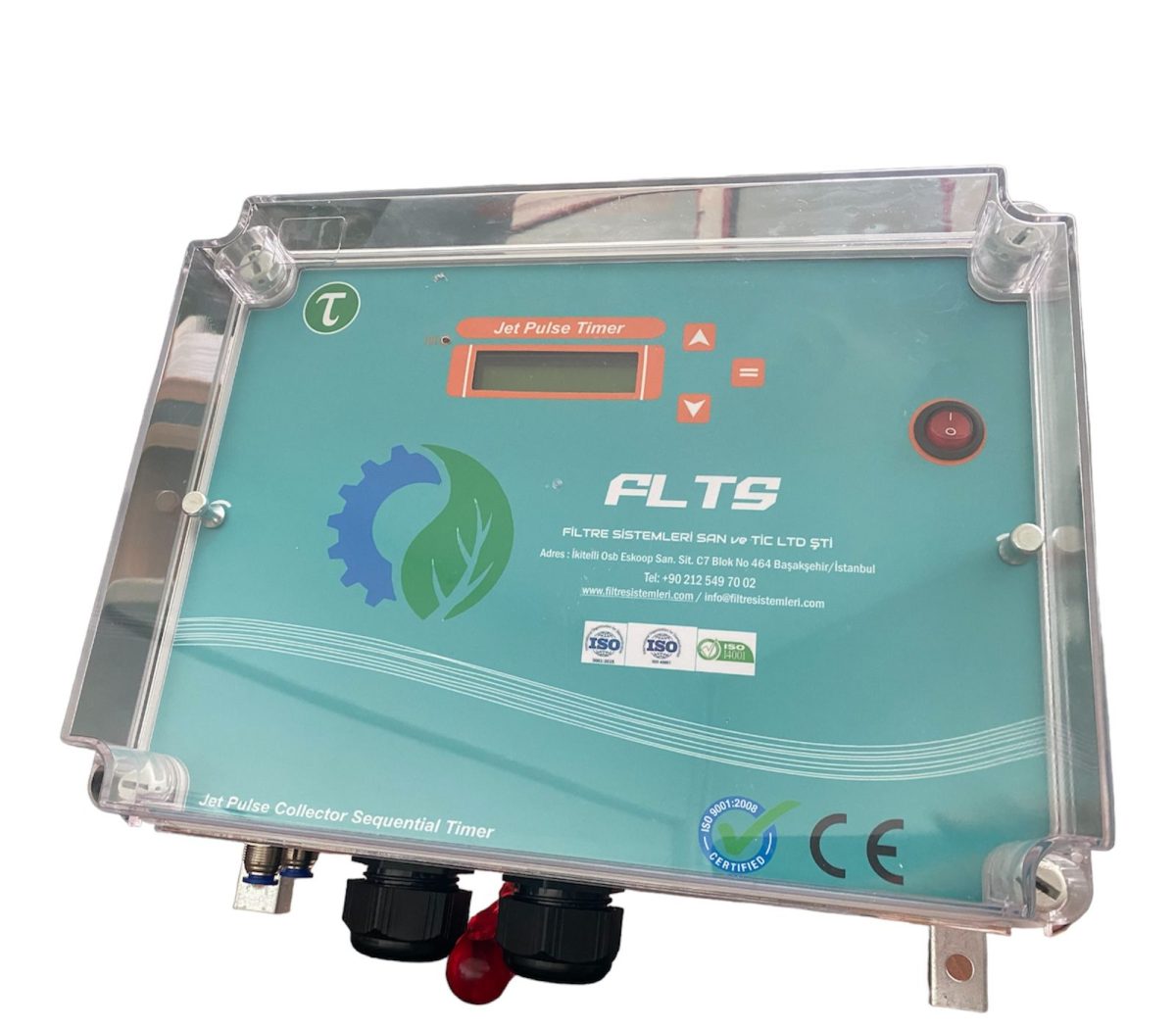

Pulse Valve Control Panel
What is a Jet Pulse Timer? What Does It Do?
A jet pulse timer is an electronic device used in industrial dust collection systems to control the cleaning cycles of jet pulse filters. By regulating the opening and closing of solenoid valves at specific intervals, it automates the regular cleaning of filter bags. This ensures the filtration system operates at maximum efficiency, saves energy, and reduces maintenance costs.
How Does a Jet Pulse Timer Work?
A jet pulse timer is typically mounted inside the control panel and contains timer circuits that directly trigger the solenoid valves. The device operates based on two main timing parameters:
-
Pulse Duration (ON Time): The period during which the valve remains open. It is typically adjustable within a range of 50–300 milliseconds.
-
Interval Duration (OFF Time): The time between the closing of one valve and the activation of the next. This duration can range from a few seconds to several minutes, depending on the dust load in the system.
The timer repeats these two timing cycles in sequence, cleaning the filter bags one by one and ensuring efficient use of compressed air.
Capacity, filter area and housing dimensions are sized for your plant according to dust type, dust load and air flow. Share your process details and we will define the right system and quotation with you.
- Pulse Valve Control Panel made in-house in İkitelli OSB
- Site survey and engineering for Pulse Valve Control Panel
- Pulse Valve Control Panel installation and commissioning
- Pulse Valve Control Panel spare parts and maintenance
FLTS Filter Systems – Pulse Valve Control Panel
At the heart of industrial dust collection systems, the pulse valve control panel from FLTS Filter Systems delivers maximum efficiency, long service life, and high performance. Used in jet pulse filter systems, these panels automate the cleaning of filter bags, ensuring continuous, safe, and effective operation of the system.
What is a Pulse Valve Control Panel?
The pulse valve control panel offered by FLTS triggers solenoid valves at specific intervals, allowing accumulated dust in the filter elements to be discharged. This automatic system not only saves energy but also extends maintenance intervals for the filter systems, providing significant advantages to industrial operations.
FLTS Pulse Valve Control Panel Features
-
✅ Options for 4 to 32 Channels
-
✅ Digital Timer Control
-
✅ LED Indicator Display for Fault and Valve Monitoring
-
✅ Durable for Harsh Environments with IP65 Protection Rating
-
✅ Compact Design with Easy Installation
-
✅ Short-Circuit and Overvoltage Protection
Applications
FLTS pulse valve control panels are specially designed for systems operating in dusty and heavy industrial conditions. Our main application areas include:
-
🏭 Cement and Concrete Production Facilities
-
🛢️ Chemical and Petrochemical Industry
-
🌾 Food Production and Packaging Lines
-
🪵 Woodworking and Furniture Workshops
-
🏗️ Metalworking and Foundry Factories
Why Choose FLTS Pulse Valve Control Panel?
FLTS Filter Systems, we provide not just a product, but a complete solution. Thanks to our control panels, each optimized for specific industry needs:
-
Up to 30% Energy Savings
-
Extended Lifespan of Filter Equipment
-
Minimal Maintenance Costs with Automatic Systems
-
Advantage of Local Manufacturing and Fast Spare Part Supply
General information on dust collection systems
General Details
What Is a DP (Differential Pressure) Controlled Timer?
A DP (differential pressure) controlled timer, used in industrial dust collection and air filtration systems, is an electronic control device that sets cleaning intervals based on differential pressure data. To keep the filters operating effectively, the device continuously monitors the differential pressure in the system and determines when the filters need to be cleaned.
Differential pressure (DP) rising means that more dust has built up on the filter. The DP controlled timer detects this increase and, at defined intervals, triggers the jet pulse valves to clean the filters automatically. This process plays a critical role in keeping the system running efficiently, saving energy and extending filter life.
How Does a DP (Differential Pressure) Controlled Timer Work?
The DP controlled timer continuously monitors the differential pressure level in the system and adjusts its operation based on this data. Differential pressure is the difference in air pressure between the upstream and downstream sides of a filter. As this difference increases, it indicates that the filter is becoming loaded and dust can no longer pass through. In this case:
-
When differential pressure rises: The DP timer detects that the filters need cleaning and activates the jet pulse system.
-
When pressure returns to normal levels: The timer completes the filter cleaning cycle and reduces energy consumption.
This system provides more precise and more efficient filter cleaning, prevents unnecessary cleaning cycles and extends filter life.
DP (Differential Pressure) Controlled Timer Features
-
✅ Differential Pressure Monitoring: Continuously monitors differential pressure values and adjusts filter cleaning timing accordingly.
-
✅ Timer Settings: The cleaning cycle can be customized to suit different industrial requirements.
-
✅ Digital Display: Real-time pressure data and timing settings can be easily monitored on the LED display.
-
✅ Precision: Operates with high precision to ensure the filters are cleaned at the right time.
-
✅ Flexible Operating Modes: Manual or automatic setting options make it suitable for all types of industrial applications.
-
✅ Easy Installation and Integration: Quick mounting and system integration, compatible with a wide range of dust collection systems.
-
✅ Durable Design: Robust, long-lasting construction suited to harsh industrial environments.
Where Are DP (Differential Pressure) Controlled Timers Used?
DP controlled timers are widely used in dust collection and air filtration systems in particular, and perform effectively in the following areas:
-
🏭 Cement and concrete production plants
-
🛢️ Chemical and petrochemical industry
-
🌾 Food production and processing plants
-
🪵 Woodworking and furniture production lines
-
🏗️ Metalworking plants and foundries
-
⚙️ Machinery manufacturing and automotive industry
Advantages of Using a DP (Differential Pressure) Controlled Timer
-
Energy Efficiency: Avoiding unnecessary cleaning cycles saves energy.
-
Longer Filter Life: Cleaning at the right time keeps the filters operating efficiently for longer.
-
Reduced Maintenance: The automatic cleaning cycle lowers maintenance costs.
-
Precise Timing: Timing is set instantly and accurately according to the differential pressure level.
-
High Efficiency: The system always runs at peak efficiency while airflow is maintained.
-
Easy Integration: Integrates easily with a variety of industrial systems and air filtration equipment.
DP (Differential Pressure) Controlled Timer Prices
Prices for DP controlled timers may vary depending on the device specifications, the number of channels, the type of system and the integration options. Contact us for a quotation tailored to your requirements.
-
