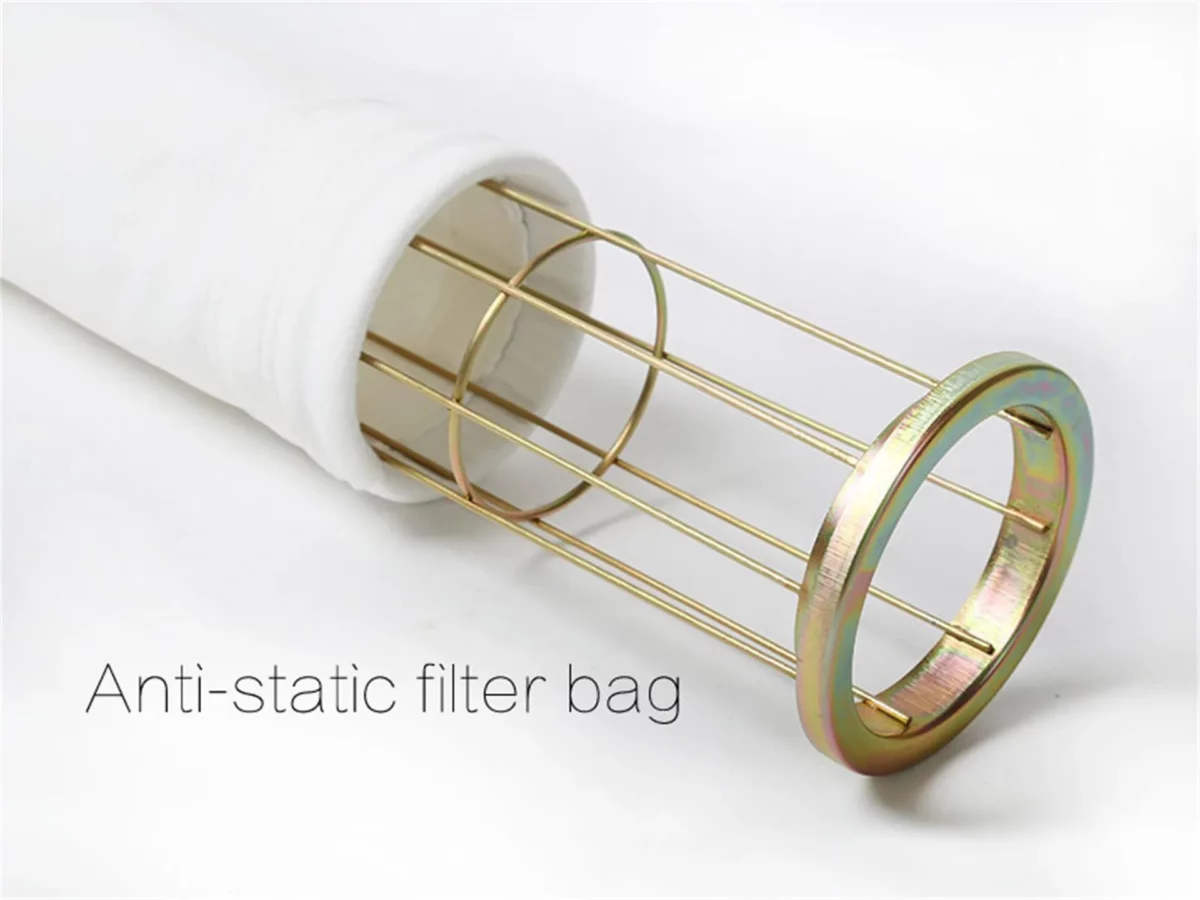

Antistatic Filter Bag
Antistatic Filter Bag
Antistatic properties can be imparted to polyester fabric by adding conductive threads or conductive fibers. In environments where static charge accumulation occurs, the charge can be discharged by grounding through the antistatic fabric, thus preventing the formation of electrical sparks.
Unit price per m²: 2.80 EUR/m² (fabric weight: 500 g/m²). Contact us for an up-to-date quote.
Capacity, filter area and housing dimensions are sized for your plant according to dust type, dust load and air flow. Share your process details and we will define the right system and quotation with you.
- Antistatic Filter Bag made in-house in İkitelli OSB
- Site survey and engineering for Antistatic Filter Bag
- Antistatic Filter Bag installation and commissioning
- Antistatic Filter Bag spare parts and maintenance
| CONTENT: 100% ANTISTATIC POLYESTER | |
| INNER STRUCTURE: POLYESTER | |
| WEIGHT: 525 g/m² ± 5% | |
| AIR PERMEABILITY: 11,000 – 14,000 l/dm²/hour (Dp: 200 Pa) | |
| THICKNESS2.0 mm | |
| SURFACE TREATMENT: Calendering and gas treatment, water and oil repellent hydrophobic impregnation |
|
| OPERATING TEMPERATURE: Continuous 150°C dry temperature |
|
| ACID RESISTANCE: Medium |
|
| ALKALI RESISTANCEPOOR | |
| HYDROLYSIS RESISTANCE: Poor |
|
| SOLVENT RESISTANCEEXCELLENT | |
| OXIDATION RESISTANCEEXCELLENT |
General information on dust collection systems
General Details
| COMPOSITION | 100% ANTISTATIC POLYESTER |
| SCRIM | ANTISTATIC POLYESTER |
| WEIGHT | 550 g/m² ± 5% |
| AIR PERMEABILITY | 11,000 – 14,000 lt/dm²/h (Dp:200 Pa) |
| THICKNESS | 2.5 mm |
| TENSILE STRENGTH | Warp: 110 kgf/5 cm – Weft: 140 kgf/5 cm |
| SURFACE TREATMENT | CALENDERED AND SINGED, WATER- AND OIL-REPELLENT HYDROPHOBIC IMPREGNATION |
| OPERATING TEMPERATURE | CONTINUOUS 130°C (DRY HEAT) |
| ACID RESISTANCE | MODERATE |
| ALKALI RESISTANCE | POOR |
| HYDROLYSIS RESISTANCE | POOR |
| SOLVENT RESISTANCE | EXCELLENT |
| OXIDATION RESISTANCE | EXCELLENT |
